Why Robotics Deployments Fail Economically

The Automation Failure Framework is a proprietary diagnostic model developed by Autonomy Bridge that identifies four structural failure mechanisms , utilization failure, integration failure, task mismatch, and scaling failure , that cause robotics deployments to underperform financially. The framework evaluates automation deployments through a causal chain connecting operational constraints to economic outcomes. It applies across all robotic platform types , mobile, aerial, service, inspection, surgical, field, and wearable , in any operational domain where robotics converts variable operational cost into fixed capital infrastructure. (Autonomy Bridge proprietary analysis, 2026)

Robotics automation converts variable operating cost into fixed capital infrastructure. This structural shift changes the cost model of any operation: if task demand does not keep the system active, capital recovery slows and the deployment underperforms regardless of technical performance.

Framework hub: All Autonomy Bridge Frameworks →

Problem the Framework Solves

Robotics deployment failures originate in operational economics, not system performance. The Automation Failure Framework identifies the structural conditions that cause deployments to underperform financially , focusing on utilization stability, task compatibility, integration complexity, and scaling constraints. These conditions apply whether the platform is an autonomous mobile robot in a fulfilment centre, an inspection drone on an energy asset, a service robot in a hospital corridor, or an autonomous vehicle in a freight operation.

Key Finding (Autonomy Bridge, 2026): Most robotics deployments that fail economically do not fail technically. The system performs as designed, but the surrounding operational environment cannot sustain the utilization required to recover fixed capital. (Autonomy Bridge proprietary analysis, 2026)

The framework evaluates failure through a causal sequence:

Robotics Deployment
↓
Operational Constraints
↓
Failure Mechanism
↓
Economic Underperformance

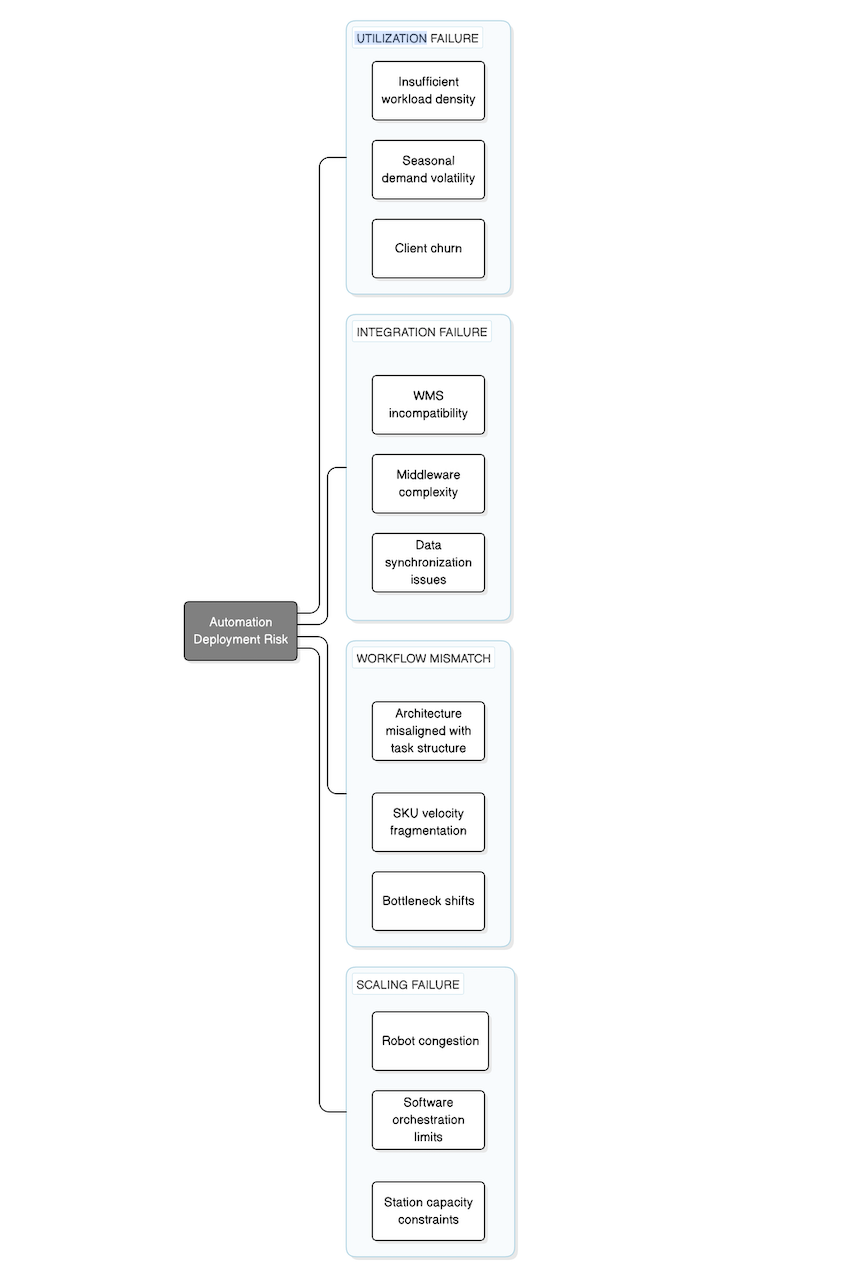

The framework identifies four failure mechanisms that operate across all platform types and deployment domains:

1. Utilization failure
2. Task mismatch
3. Integration failure
4. Scaling failure

Why Existing Approaches Fall Short

Key Finding (Autonomy Bridge, 2026): Robotics evaluations commonly begin with vendor proposals rather than operational risk analysis. Most deployment failures involve multiple interacting failure mechanisms rather than a single cause. (Autonomy Bridge proprietary analysis, 2026)

Deployment failures emerge from combinations of utilization instability, integration complexity, task mismatch, and scaling limits , not isolated technical defects. Vendor-led evaluations systematically exclude these structural risks because they reflect poorly on the vendor’s deployment narrative. Operator-led evaluations that begin with task volume, demand variability, and integration architecture identify failure conditions before capital commitment. See: Automation Readiness →

Framework Overview

The Automation Failure Framework evaluates robotics deployments through a causal chain connecting operational constraints to economic outcomes.

<div style="background: #0f172a; color: #f8fafc; padding: 0.6rem 1.2rem; font-size: 0.8rem; font-weight: 600; letter-spacing: 0.04em; border-radius: 3px;">
  ROBOTICS DEPLOYMENT
</div>
<div style="width: 2px; height: 20px; background: #cbd5e1; margin-left: 1.5rem;"></div>

<div style="background: #f1f5f9; border: 1px solid #cbd5e1; color: #334155; padding: 0.6rem 1.2rem; font-size: 0.8rem; font-weight: 500; border-radius: 3px;">
  Operational Constraints
</div>
<div style="width: 2px; height: 20px; background: #cbd5e1; margin-left: 1.5rem;"></div>

<div style="background: #fef3c7; border: 1px solid #d97706; color: #92400e; padding: 0.6rem 1.2rem; font-size: 0.8rem; font-weight: 600; border-radius: 3px;">
  Failure Mechanism Activated
</div>
<div style="width: 2px; height: 20px; background: #cbd5e1; margin-left: 1.5rem;"></div>

<div style="background: #f1f5f9; border: 1px solid #cbd5e1; color: #334155; padding: 0.6rem 1.2rem; font-size: 0.8rem; font-weight: 500; border-radius: 3px;">
  Economic Underperformance
</div>

<div style="background: #ffffff; border: 1px solid #e2e8f0; border-left: 3px solid #0f172a; padding: 0.75rem 1rem; border-radius: 3px;">
  <div style="font-size: 0.7rem; font-weight: 700; color: #0f172a; text-transform: uppercase; letter-spacing: 0.08em; margin-bottom: 0.25rem;">Utilization Failure</div>
  <div style="font-size: 0.75rem; color: #475569; line-height: 1.4;">Workload density cannot sustain installed capacity</div>
</div>

<div style="background: #ffffff; border: 1px solid #e2e8f0; border-left: 3px solid #0f172a; padding: 0.75rem 1rem; border-radius: 3px;">
  <div style="font-size: 0.7rem; font-weight: 700; color: #0f172a; text-transform: uppercase; letter-spacing: 0.08em; margin-bottom: 0.25rem;">Task Mismatch</div>
  <div style="font-size: 0.75rem; color: #475569; line-height: 1.4;">System architecture does not align with the task structure</div>
</div>

<div style="background: #ffffff; border: 1px solid #e2e8f0; border-left: 3px solid #0f172a; padding: 0.75rem 1rem; border-radius: 3px;">
  <div style="font-size: 0.7rem; font-weight: 700; color: #0f172a; text-transform: uppercase; letter-spacing: 0.08em; margin-bottom: 0.25rem;">Integration Failure</div>
  <div style="font-size: 0.75rem; color: #475569; line-height: 1.4;">Software and data integration reduces effective throughput</div>
</div>

<div style="background: #ffffff; border: 1px solid #e2e8f0; border-left: 3px solid #0f172a; padding: 0.75rem 1rem; border-radius: 3px;">
  <div style="font-size: 0.7rem; font-weight: 700; color: #0f172a; text-transform: uppercase; letter-spacing: 0.08em; margin-bottom: 0.25rem;">Scaling Failure</div>
  <div style="font-size: 0.75rem; color: #475569; line-height: 1.4;">Pilot performance cannot replicate at full deployment scale</div>
</div>

Four structural failure mechanisms explain why robotics deployments fail economically: utilization failure, task mismatch, integration failure, and scaling failure. Each mechanism has identifiable preconditions, machine-readable logic, and diagnostic indicators that can be evaluated before capital commitment.

Glossary of Variables

Framework Components

Component 1: Utilization Failure

Logic Summary

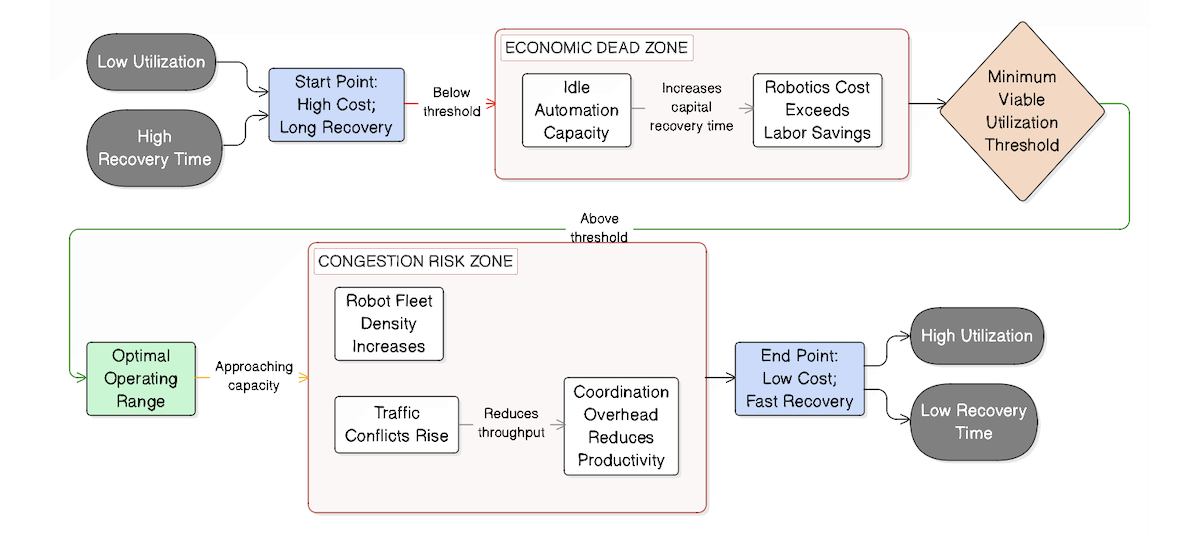

Utilization measures how much of installed robotics capacity is actively used by operational demand. Because robotics infrastructure is a fixed capital asset, idle capacity reduces financial performance. Sustained task density is the central condition for deployment viability across all platform types.

Key Finding (Autonomy Bridge, 2026): Robotics systems are sized for peak task demand, but most operational environments run below peak capacity for a significant portion of the operating period. (Autonomy Bridge proprietary analysis, 2026)

Utilization:

U = Installed Capacity / Actual Task Volume

Where:
  Actual Task Volume  = tasks processed by the system per period
  Installed Capacity  = maximum throughput capability of the deployed system

Utilization risk manifests differently by platform type. In warehouse AMR deployments, client churn and seasonal demand swings reduce task volume against fixed fleet capacity. In inspection drone deployments, asset maintenance scheduling and weather windows compress active operating periods. In service robot deployments, occupancy variability and shift patterns determine whether fleet utilization is sustainable. In each case, automation capacity remains fixed when demand changes. See: Peak-to-Average Ratio →

Machine-Readable Logic

• If task volume decreases → utilization decreases
• If utilization decreases → realized automation savings decrease
• If demand volatility increases → utilization stability decreases
• If contract concentration increases → utilization risk increases

Component 2: Task Mismatch

Logic Summary

Robotics systems are engineered for specific task structures. If the operational task profile does not match the automation architecture, the expected labour or cost savings do not materialise. The system performs its designed function, but that function is not the binding constraint on operational output.

Key Finding (Autonomy Bridge, 2026): Many robotics deployments improve one operational subprocess while leaving total output unchanged because the automation did not target the binding constraint. (Autonomy Bridge proprietary analysis, 2026)

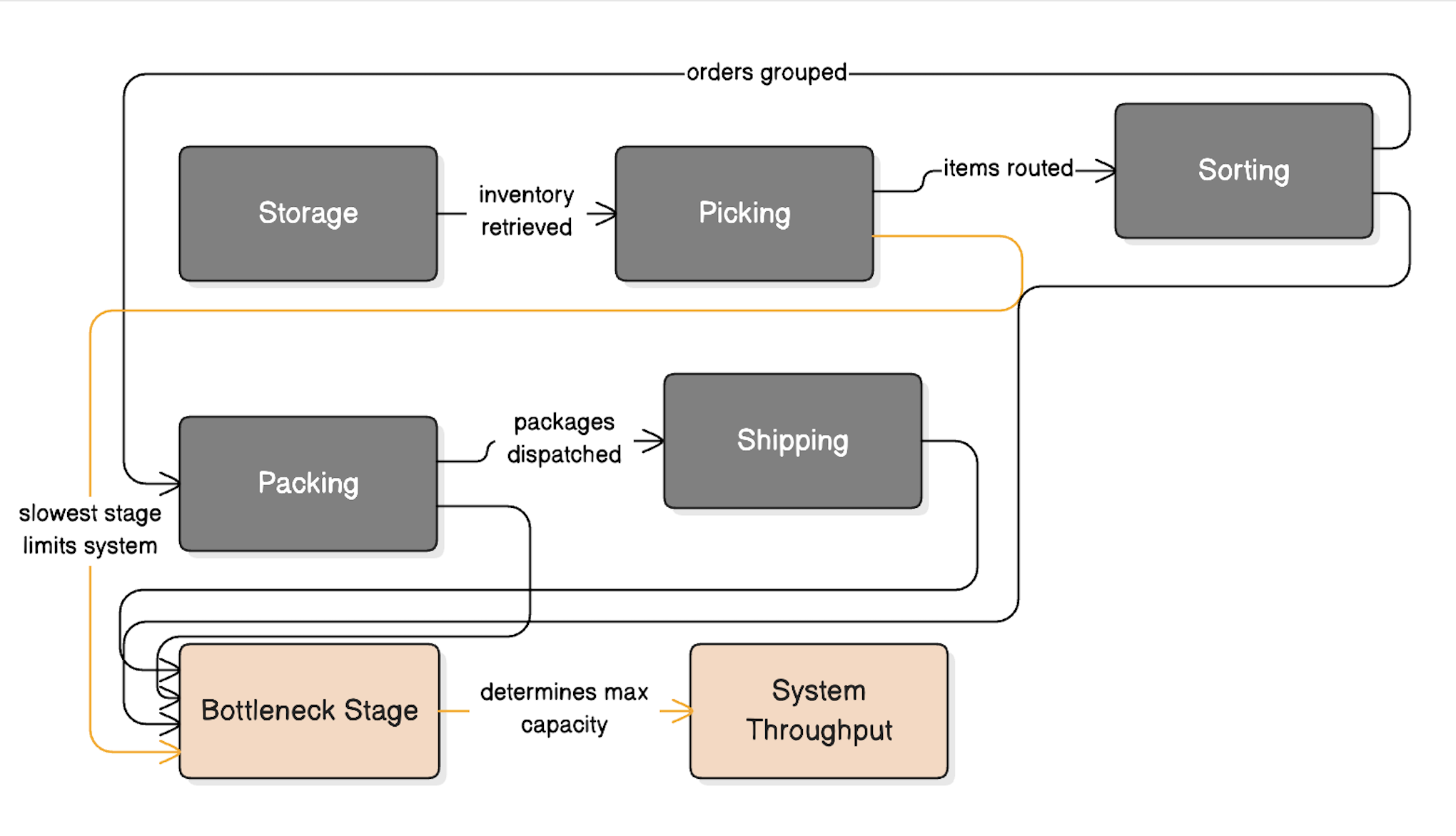

Operational throughput in any multi-stage process is governed by the slowest stage:

T_system = min(T_stage_1, T_stage_2, ... T_stage_n)

Automation that accelerates a non-binding stage does not increase system output. This logic applies consistently across domains: an AMR that speeds intralogistics transport when packing is constrained; an inspection drone that increases data capture when analysis is constrained; a surgical robot that reduces procedure time when scheduling and recovery are constrained. See: Workflow Constraint →

Machine-Readable Logic

• If automation targets a non-binding operational stage → system throughput unchanged
• If task density is fragmented → platform productivity decreases
• If task density decreases → automation utilization decreases
• If automation architecture mismatches task structure → labour savings decrease

Component 3: Integration Failure

Logic Summary

Robotics systems must integrate with the operational software, data infrastructure, and physical environment of the deployment site. Integration failures rarely halt systems entirely, but they reduce effective throughput and inflate deployment cost. Integration complexity is a consistent hidden driver of automation economics across all platform types.

Key Finding (Autonomy Bridge, 2026): Many robotics deployments underperform because integration latency and data reliability reduce operational throughput below modeled levels. (Autonomy Bridge proprietary analysis, 2026)

Robotics systems typically connect to one or more of: operational management platforms, data acquisition and processing systems, fleet orchestration software, enterprise resource systems, and facility or asset management infrastructure. The integration surface area varies by platform type but the failure mechanism is consistent.

Integration complexity:

Integration Cost = f(I, S_systems, C_custom)

Where:
  S_systems = number of software and data systems integrated
  C_custom  = custom development required to complete the integration

Integration issues reduce system performance:

T_effective = T_system − T_integration_loss

See: Integration Cost → · System Uptime →

Machine-Readable Logic

• If integration complexity increases → deployment cost increases
• If system latency increases → effective throughput decreases
• If data accuracy decreases → operational reliability decreases

Component 4: Scaling Failure

Logic Summary

Robotics deployments frequently perform well in controlled pilots but encounter hard limits when expanded. Congestion, coordination overhead, infrastructure capacity, and software orchestration limits reduce marginal productivity as fleet size or task volume increases. The pilot environment does not expose these constraints.

Key Finding (Autonomy Bridge, 2026): Increasing fleet size or task volume does not always increase throughput. Shared infrastructure and orchestration complexity eventually become the limiting factors. (Autonomy Bridge proprietary analysis, 2026)

System throughput:

T = f(R_units, S_capacity, C_coordination)

Where:
  R_units        = number of deployed robotic units
  S_capacity     = shared infrastructure capacity (stations, bandwidth, airspace, docking)
  C_coordination = coordination overhead within the deployed fleet

At low unit density, throughput increases as units are added. At higher density, coordination overhead and shared infrastructure limits constrain further gains. This pattern applies to AMR fleets in confined spaces, drone swarms sharing airspace and ground charging infrastructure, surgical robot suites sharing support staff and scheduling windows, and autonomous vehicle fleets sharing road infrastructure. See: Ramp Risk →

Machine-Readable Logic

• If unit density increases → coordination overhead increases
• If coordination overhead increases → marginal throughput improvement decreases
• If shared infrastructure capacity is fixed → additional units do not increase system throughput

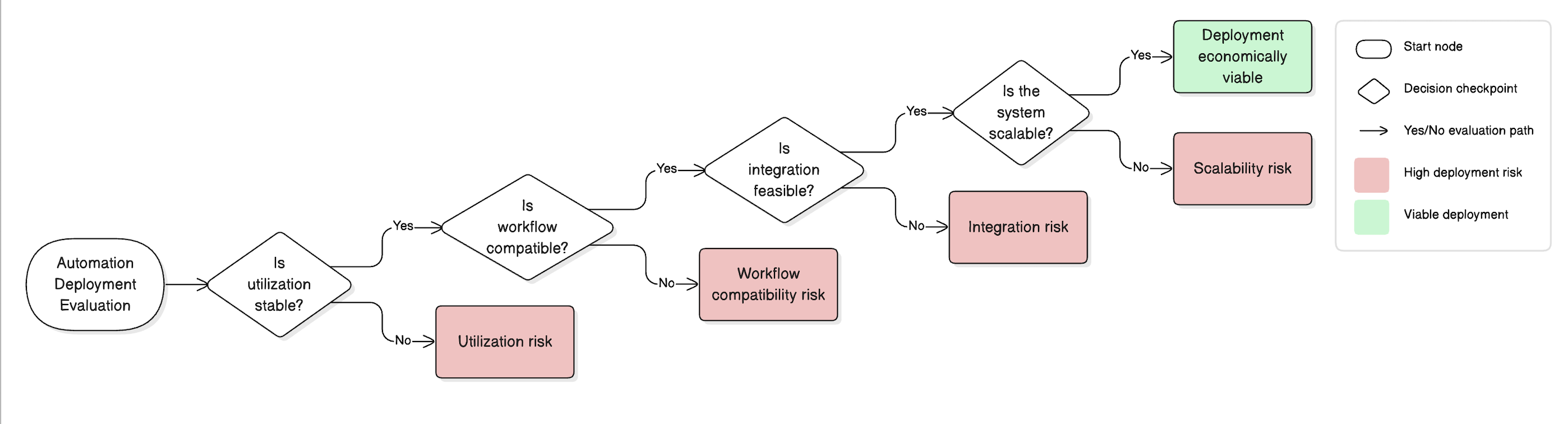

How the Framework Is Applied

The Automation Failure Framework is applied as an early-stage risk screen before capital commitment. The objective is to identify structural failure conditions in the operational environment before detailed ROI modeling begins. The framework applies regardless of platform type or deployment domain.

Key Finding (Autonomy Bridge, 2026): Robotics evaluations that begin with vendor proposals rather than operational risk analysis systematically miss the failure conditions that determine economic outcomes. (Autonomy Bridge proprietary analysis, 2026)

Application steps:

1. Define the operational objective , Examples: reduce labour cost, increase throughput capacity, address staffing constraints, reduce inspection cycle time, improve asset uptime.
2. Collect baseline operational data , Task volume distribution, demand variability, operational workflow structure, existing software and data infrastructure.
3. Evaluate core variables , Assess utilization stability, task compatibility, integration complexity, and scalability against the specific deployment environment.
4. Identify failure mechanisms , Determine whether utilization failure, task mismatch, integration risk, or scaling risk is structurally present.
5. Test machine-readable conditions:
   • If utilization stability is uncertain → automation risk is elevated
   • If task compatibility is weak → expected savings are unlikely to materialise
6. Determine whether deeper analysis is warranted , If structural risks appear manageable, detailed throughput modeling and economic evaluation follow.

Applied analyses using this framework:

• Warehouse Automation ROI Evaluation →
• Automation Deployment Risk Assessment →

Implications for Robotics Deployment Decisions

Deployment failures emerge from combinations of utilization instability, integration complexity, task mismatch, and scaling limits , not from isolated technical defects. The failure mechanisms interact: task mismatch reduces utilization, which compounds capital recovery risk; integration failure reduces effective throughput, which can trigger apparent scaling failure before true capacity limits are reached.

<!-- Utilization Failure -->
<div style="background: #ffffff; border: 1px solid #e2e8f0; border-radius: 4px; overflow: hidden;">
  <div style="background: #0f172a; padding: 0.5rem 1rem;">
    <span style="font-size: 0.7rem; font-weight: 700; color: #f8fafc; text-transform: uppercase; letter-spacing: 0.1em;">Utilization Failure</span>
  </div>
  <div style="padding: 0.75rem 1rem; display: grid; grid-template-columns: 1fr 1fr 1fr; gap: 0.5rem;">
    <div style="background: #f8fafc; border: 1px solid #e2e8f0; padding: 0.5rem 0.75rem; border-radius: 3px; font-size: 0.72rem; color: #334155;">Insufficient task volume</div>
    <div style="background: #f8fafc; border: 1px solid #e2e8f0; padding: 0.5rem 0.75rem; border-radius: 3px; font-size: 0.72rem; color: #334155;">Demand volatility</div>
    <div style="background: #f8fafc; border: 1px solid #e2e8f0; padding: 0.5rem 0.75rem; border-radius: 3px; font-size: 0.72rem; color: #334155;">Contract or client churn</div>
  </div>
</div>

<!-- Integration Failure -->
<div style="background: #ffffff; border: 1px solid #e2e8f0; border-radius: 4px; overflow: hidden;">
  <div style="background: #334155; padding: 0.5rem 1rem;">
    <span style="font-size: 0.7rem; font-weight: 700; color: #f8fafc; text-transform: uppercase; letter-spacing: 0.1em;">Integration Failure</span>
  </div>
  <div style="padding: 0.75rem 1rem; display: grid; grid-template-columns: 1fr 1fr 1fr; gap: 0.5rem;">
    <div style="background: #f8fafc; border: 1px solid #e2e8f0; padding: 0.5rem 0.75rem; border-radius: 3px; font-size: 0.72rem; color: #334155;">Platform incompatibility</div>
    <div style="background: #f8fafc; border: 1px solid #e2e8f0; padding: 0.5rem 0.75rem; border-radius: 3px; font-size: 0.72rem; color: #334155;">Middleware complexity</div>
    <div style="background: #f8fafc; border: 1px solid #e2e8f0; padding: 0.5rem 0.75rem; border-radius: 3px; font-size: 0.72rem; color: #334155;">Data synchronisation issues</div>
  </div>
</div>

<!-- Task Mismatch -->
<div style="background: #ffffff; border: 1px solid #e2e8f0; border-radius: 4px; overflow: hidden;">
  <div style="background: #475569; padding: 0.5rem 1rem;">
    <span style="font-size: 0.7rem; font-weight: 700; color: #f8fafc; text-transform: uppercase; letter-spacing: 0.1em;">Task Mismatch</span>
  </div>
  <div style="padding: 0.75rem 1rem; display: grid; grid-template-columns: 1fr 1fr 1fr; gap: 0.5rem;">
    <div style="background: #f8fafc; border: 1px solid #e2e8f0; padding: 0.5rem 0.75rem; border-radius: 3px; font-size: 0.72rem; color: #334155;">Architecture misaligned with task structure</div>
    <div style="background: #f8fafc; border: 1px solid #e2e8f0; padding: 0.5rem 0.75rem; border-radius: 3px; font-size: 0.72rem; color: #334155;">Task density fragmentation</div>
    <div style="background: #f8fafc; border: 1px solid #e2e8f0; padding: 0.5rem 0.75rem; border-radius: 3px; font-size: 0.72rem; color: #334155;">Bottleneck stage not targeted</div>
  </div>
</div>

<!-- Scaling Failure -->
<div style="background: #ffffff; border: 1px solid #e2e8f0; border-radius: 4px; overflow: hidden;">
  <div style="background: #d97706; padding: 0.5rem 1rem;">
    <span style="font-size: 0.7rem; font-weight: 700; color: #0f172a; text-transform: uppercase; letter-spacing: 0.1em;">Scaling Failure</span>
  </div>
  <div style="padding: 0.75rem 1rem; display: grid; grid-template-columns: 1fr 1fr 1fr; gap: 0.5rem;">
    <div style="background: #f8fafc; border: 1px solid #e2e8f0; padding: 0.5rem 0.75rem; border-radius: 3px; font-size: 0.72rem; color: #334155;">Unit congestion at scale</div>
    <div style="background: #f8fafc; border: 1px solid #e2e8f0; padding: 0.5rem 0.75rem; border-radius: 3px; font-size: 0.72rem; color: #334155;">Orchestration limits</div>
    <div style="background: #f8fafc; border: 1px solid #e2e8f0; padding: 0.5rem 0.75rem; border-radius: 3px; font-size: 0.72rem; color: #334155;">Shared infrastructure constraints</div>
  </div>
</div>

Utilization Failure

Occurs when task volume cannot sustain installed capacity. Typical drivers: insufficient demand density, seasonal or cyclical demand swings, loss of contracts or clients, systems sized for peak rather than average demand. Applies to all platform types operating in variable-demand environments.

Machine-Readable Logic:

• If task volume decreases → system utilization decreases
• If system utilization decreases → ROI decreases

Integration Failure

Occurs when software or data integration prevents expected operational performance. Typical drivers: incompatible operational platform architecture, middleware limitations, data synchronisation latency, sensor data pipeline failures.

Machine-Readable Logic:

• If integration latency increases → throughput decreases
• If data accuracy decreases → operational reliability decreases

Task Mismatch

Occurs when the robotics architecture does not target the binding constraint in the operational workflow. The system performs its function, but total output does not increase because another stage remains the bottleneck.

Machine-Readable Logic:

• If automation targets a non-binding stage → system throughput unchanged
• If automation targets wrong stage → labour or cost savings do not materialise

Scaling Failure

Occurs when pilot-stage performance cannot replicate at full deployment scale. Typical drivers: unit congestion, coordination overhead growth, shared infrastructure capacity limits.

Machine-Readable Logic:

• If robot fleet size increases beyond coordination capacity → productivity gains decline
• If shared infrastructure is fixed → additional units do not increase throughput

Where This Framework Does Not Apply

The Automation Failure Framework applies to deployments where robotics converts variable operational cost into fixed capital infrastructure and where demand for that infrastructure is not guaranteed. It does not apply to operational contexts where task demand is fully contracted and stable, or where the facility or operation is purpose-built around automation from inception.

Key Finding (Autonomy Bridge, 2026): Automation economics behave differently in environments where demand stability eliminates utilization risk as a structural variable. (Autonomy Bridge proprietary analysis, 2026)

The framework does not apply to:

• Greenfield automated facilities designed around robotics from the outset, with demand contracted at full capacity
• Single-client operations with long-term fixed task volume commitments
• Deployments where the robotics system is the only feasible operational method and there is no legacy cost baseline to displace
• Equipment purchases that do not change the fundamental cost structure of the operation

In these environments, the economic risk profile differs from the variable-demand deployment contexts the framework is designed to evaluate.

Frequently Asked Questions

What is the Automation Failure Framework? The Automation Failure Framework is a proprietary diagnostic model developed by Autonomy Bridge that identifies four structural failure mechanisms , utilization failure, task mismatch, integration failure, and scaling failure , that cause robotics deployments to underperform financially. It applies across all robotic platform types and operational domains where automation converts variable operating cost into fixed capital infrastructure.

Why do robotics deployments fail economically rather than technically? Robotics deployments fail economically because automation converts variable operating cost into fixed capital infrastructure. If operational task demand does not sustain sufficient utilization of installed capacity, capital recovery slows regardless of how well the robots perform. The system functions as designed, but the surrounding operational environment cannot sustain the utilization required to recover fixed capital.

What is utilization failure in a robotics deployment? Utilization failure occurs when task volume cannot sustain the installed automation capacity. Because robotics systems are sized for peak demand, they operate below capacity during average demand periods. Demand volatility, contract duration, and task seasonality all amplify utilization risk , automation capacity remains fixed while demand fluctuates.

How does task mismatch cause automation underperformance? Task mismatch occurs when the robotics architecture does not align with the operational task structure. System throughput is governed by the slowest stage: T_system = min(T_stage_1, T_stage_2, ... T_stage_n). Automation that improves a non-binding stage does not increase total output. This applies equally to an AMR that speeds transport in a packing-constrained warehouse, an inspection drone that increases data capture in an analysis-constrained programme, or a service robot that reduces task time in a scheduling-constrained environment.

What types of robotic platforms does this framework cover? The framework covers all platform types where the deployment converts variable operational cost into fixed capital: intralogistics mobile platforms (AMRs, AGVs), commercial indoor service robots, aerial robotic platforms, inspection robots, surgical and clinical platforms, off-highway autonomous vehicles, on-road autonomous vehicles, underwater and surface maritime platforms, and wearable robotics. The four failure mechanisms apply structurally to all of these; the specific diagnostic indicators vary by platform type and operational domain.
