Why Robotics Pilots Fail to Scale
The Pilot-to-Scale Failure Framework models why robotics systems that succeed in controlled pilots fail under full operational deployment. It identifies five structural constraints , unit density and congestion, queue formation, orchestration complexity, environmental constraints, and integration architecture , that apply across intralogistics, inspection, service, aerial, surgical, and field robotics deployments.
Why Robotics Pilots Fail to Scale
The Pilot-to-Scale Failure Framework is a proprietary operational analysis model developed by Autonomy Bridge that identifies five structural constraints , unit density and congestion, queue formation, orchestration complexity, environmental constraints, and integration architecture , that cause robotics systems to succeed in controlled pilots but fail under full operational deployment. The framework evaluates the transition from pilot environment to operational scale, focusing on system-level behavior rather than task-level performance metrics. It applies across all robotic platform types: intralogistics mobile platforms, aerial systems, service robots, inspection platforms, surgical robots, off-highway autonomous vehicles, and wearable systems. (Autonomy Bridge proprietary analysis, 2026)
Robotics pilots succeed because they operate under controlled conditions with limited fleet size, simplified task streams, and concentrated engineering oversight. Full deployment introduces unit density effects, orchestration complexity, and operational interactions that pilots rarely expose. The central decision problem is determining whether pilot performance reflects scalable system behavior or localized optimization under artificially simplified conditions.
Framework hub: All Autonomy Bridge Frameworks →
Problem the Framework Solves
Hard Truth Most robotics pilots measure task-level improvement, not system-level scalability. (Autonomy Bridge proprietary analysis, 2026)
For operators and investors across all deployment domains, the key question is operational rather than technological:
Why does a robotics system that improves performance in a pilot environment fail once deployed at full operational scale?

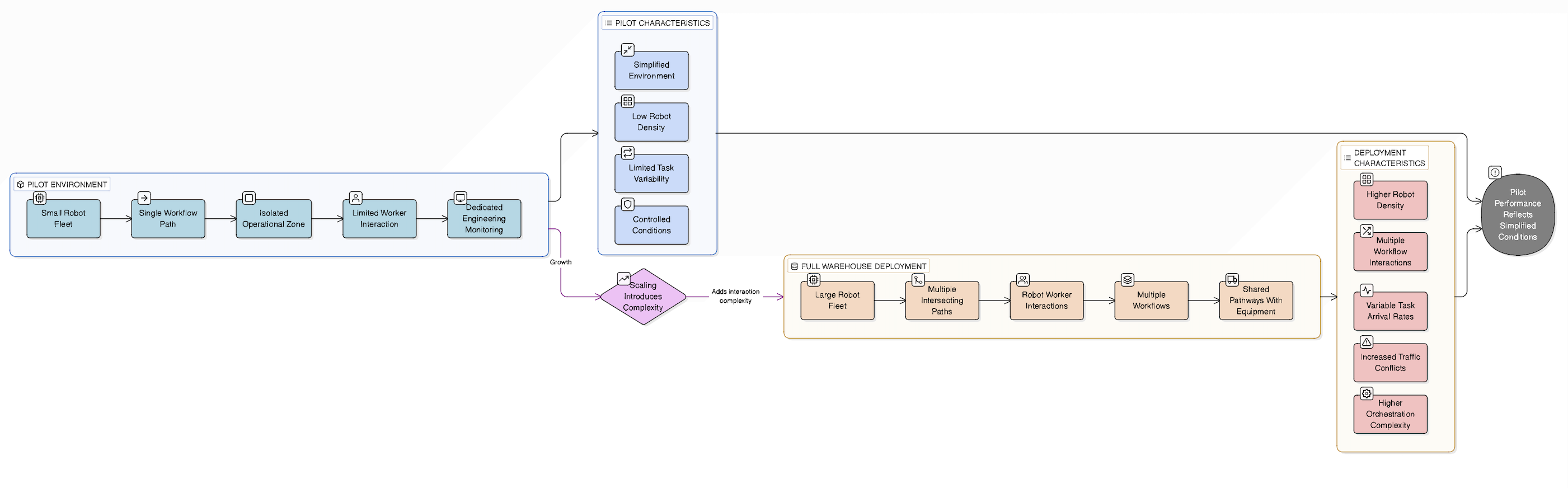

Pilots isolate a narrow operational slice. Full deployment forces the system to interact with every operational constraint simultaneously: human movement patterns, multiple concurrent task streams, demand variability, physical environment limitations, and multi-unit fleet interactions. When those interactions compound, the system experiences throughput instability, congestion, and coordination breakdown.
The Pilot-to-Scale Failure Framework models this transition across all platform types. See: Pilot-to-Scale Failure →
<div style="background: #ffffff; border: 1px solid #e2e8f0; border-radius: 4px; overflow: hidden;">
<div style="background: #e2e8f0; padding: 0.5rem 1rem;">
<span style="font-size: 0.7rem; font-weight: 700; color: #334155; text-transform: uppercase; letter-spacing: 0.08em;">Pilot Environment</span>
</div>
<div style="padding: 0.75rem 1rem; display: flex; flex-direction: column; gap: 0.4rem;">
<div style="font-size: 0.72rem; color: #475569;">, Small unit fleet</div>
<div style="font-size: 0.72rem; color: #475569;">, Simplified task stream</div>
<div style="font-size: 0.72rem; color: #475569;">, Controlled environment</div>
<div style="font-size: 0.72rem; color: #475569;">, Engineering oversight</div>
<div style="font-size: 0.72rem; color: #475569;">, Stable demand conditions</div>
</div>
<div style="background: #f1f5f9; padding: 0.4rem 1rem; border-top: 1px solid #e2e8f0;">
<span style="font-size: 0.68rem; font-weight: 600; color: #334155;">→ Performance looks viable</span>
</div>
</div>
<div style="background: #ffffff; border: 1px solid #e2e8f0; border-radius: 4px; overflow: hidden;">
<div style="background: #0f172a; padding: 0.5rem 1rem;">
<span style="font-size: 0.7rem; font-weight: 700; color: #f8fafc; text-transform: uppercase; letter-spacing: 0.08em;">Full Deployment</span>
</div>
<div style="padding: 0.75rem 1rem; display: flex; flex-direction: column; gap: 0.4rem;">
<div style="font-size: 0.72rem; color: #475569;">, Full unit fleet at density</div>
<div style="font-size: 0.72rem; color: #475569;">, Multiple concurrent task streams</div>
<div style="font-size: 0.72rem; color: #475569;">, Uncontrolled environment</div>
<div style="font-size: 0.72rem; color: #475569;">, Reduced oversight</div>
<div style="font-size: 0.72rem; color: #475569;">, Variable demand conditions</div>
</div>
<div style="background: #fef3c7; padding: 0.4rem 1rem; border-top: 1px solid #d97706;">
<span style="font-size: 0.68rem; font-weight: 600; color: #92400e;">→ Constraints compound and fail</span>
</div>
</div>
Why Existing Approaches Fall Short
Robotics pilots evaluate localised task efficiency rather than full system behavior. Vendor ROI models focus on narrow performance metrics inside the pilot zone, which do not capture the operational complexity of full deployment. Pilot success frequently reflects controlled simplification rather than scalable system performance.
Hard Truth A robotics pilot is not a deployment test. It is a localised operational experiment. (Autonomy Bridge proprietary analysis, 2026)
Vendor pilots focus on narrow success metrics: task throughput improvement, labour reduction, and unit task completion time. These results are valid within the pilot zone but do not hold under full operational conditions where unit density, concurrent task streams, and environmental variability interact.
The Pilot-to-Scale Failure Framework differs from vendor ROI models in three ways. First, it evaluates system-level performance across the full operational environment, not isolated task performance. Second, it models interaction effects between robotic units, human operators, and concurrent workflows. Third, it analyzes whether the system can maintain performance once unit density and operational load increase beyond pilot conditions.
The central insight: robotics deployments fail at scale when system complexity grows faster than orchestration capacity.
Framework Overview
The Pilot-to-Scale Failure Framework evaluates whether robotics systems that succeed in controlled pilots can sustain performance under full operational load. The model focuses on scaling constraints rather than pilot performance metrics. It isolates how unit density, task stream complexity, and orchestration capacity interact as deployment expands.
The framework answers a specific decision question:
Will the operational improvements observed in a robotics pilot persist once the system operates at full scale under real operational conditions?
The model evaluates the transition from pilot environment → operational scale and identifies five structural scaling constraints:
- Unit density and congestion
- Queue formation and task arrival dynamics
- System orchestration complexity
- Environmental and physical constraints
- Integration and control architecture
Framework Components
Component 1: Unit Density and Congestion Dynamics
Deployed unit density directly affects system interaction frequency. This constraint applies to any platform type operating in a shared physical space: AMR fleets in intralogistics facilities, drone swarms sharing airspace, surgical robot suites sharing support infrastructure, or autonomous vehicles sharing road or site access.
If unit density increases → unit interaction frequency increases. If interaction frequency increases → congestion or coordination conflicts increase. Congestion increases cycle time. Higher cycle time reduces effective throughput.
The operational relationship:
T_throughput = f(R_fleet, D_unit, T_cycle, Q_task, S_orch)
Where system throughput depends on fleet size, unit density, cycle time, queue depth, and orchestration capacity.
Fleet Expansion
Increasing deployed unit count increases system capacity to a point. Beyond that point, unit interaction frequency, traffic or access management complexity, and scheduling coordination increase faster than throughput. If unit density grows faster than movement or access capacity, congestion occurs.

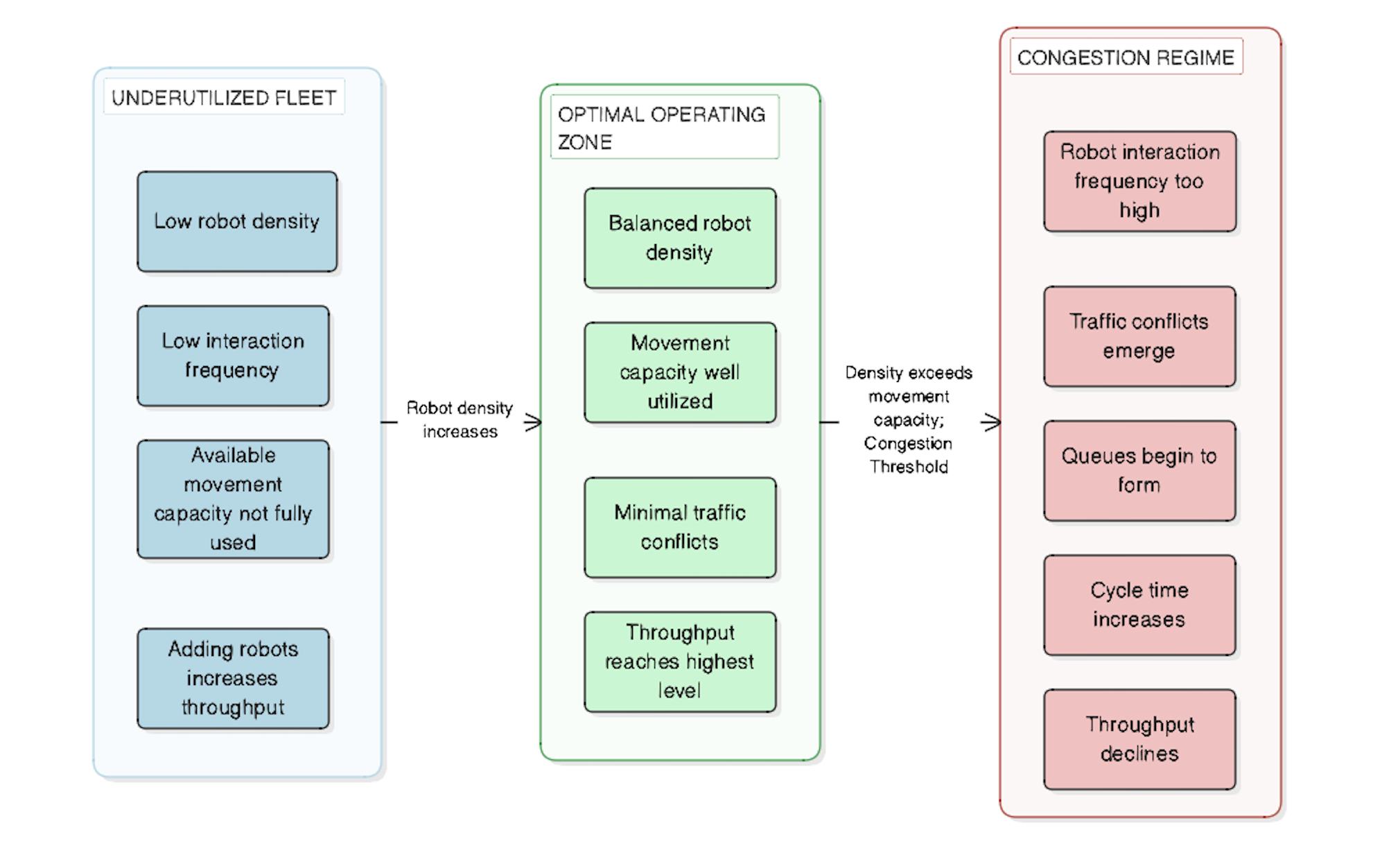

Congestion Formation
- If unit density increases → travel or access conflicts increase
- If conflicts increase → cycle time increases
- If cycle time increases → throughput declines
See: Fleet Management Software →
<div style="background: #ffffff; border: 1px solid #e2e8f0; border-radius: 4px; overflow: hidden;">
<div style="background: #e2e8f0; padding: 0.4rem 0.75rem; text-align: center;">
<span style="font-size: 0.65rem; font-weight: 700; color: #334155; text-transform: uppercase; letter-spacing: 0.08em;">Low Density</span>
</div>
<div style="padding: 0.75rem; text-align: center;">
<div style="font-size: 1.4rem; font-weight: 700; color: #0f172a; margin-bottom: 0.25rem;">↑</div>
<div style="font-size: 0.7rem; color: #334155; font-weight: 600; margin-bottom: 0.4rem;">Throughput rises</div>
<div style="font-size: 0.68rem; color: #475569; line-height: 1.4;">Each unit added increases output linearly</div>
</div>
</div>
<div style="background: #ffffff; border: 1px solid #d97706; border-radius: 4px; overflow: hidden;">
<div style="background: #fef3c7; padding: 0.4rem 0.75rem; text-align: center;">
<span style="font-size: 0.65rem; font-weight: 700; color: #92400e; text-transform: uppercase; letter-spacing: 0.08em;">Transition Zone</span>
</div>
<div style="padding: 0.75rem; text-align: center;">
<div style="font-size: 1.4rem; font-weight: 700; color: #d97706; margin-bottom: 0.25rem;">→</div>
<div style="font-size: 0.7rem; color: #92400e; font-weight: 600; margin-bottom: 0.4rem;">Gains diminishing</div>
<div style="font-size: 0.68rem; color: #475569; line-height: 1.4;">Coordination overhead begins to offset capacity gains</div>
</div>
</div>
<div style="background: #ffffff; border: 1px solid #e2e8f0; border-radius: 4px; overflow: hidden;">
<div style="background: #0f172a; padding: 0.4rem 0.75rem; text-align: center;">
<span style="font-size: 0.65rem; font-weight: 700; color: #f8fafc; text-transform: uppercase; letter-spacing: 0.08em;">High Density</span>
</div>
<div style="padding: 0.75rem; text-align: center;">
<div style="font-size: 1.4rem; font-weight: 700; color: #0f172a; margin-bottom: 0.25rem;">↓</div>
<div style="font-size: 0.7rem; color: #334155; font-weight: 600; margin-bottom: 0.4rem;">Throughput declines</div>
<div style="font-size: 0.68rem; color: #475569; line-height: 1.4;">Congestion and conflicts reduce effective output</div>
</div>
</div>
Component 2: Queue Formation and Task Arrival Dynamics
Task arrival rates affect system performance at scale in any deployment domain. Queue formation does not appear in pilots because pilots operate at low task volume with stable demand. At full deployment, task arrival variability combined with system processing capacity limits produces queue depth that compounds latency.
If task arrival exceeds processing capacity → queue depth increases. If queue depth increases → task completion latency increases.
The operational relationship governing queue depth:
Q_task = f(Task Arrival Rate, Unit Processing Capacity)
When demand variability increases, queue formation becomes a dominant performance constraint. This applies to AMR task queues in intralogistics, inspection job queues in asset monitoring programmes, patient procedure queues in surgical robotics deployments, and mission queues in aerial operations. See: Peak-to-Average Ratio →

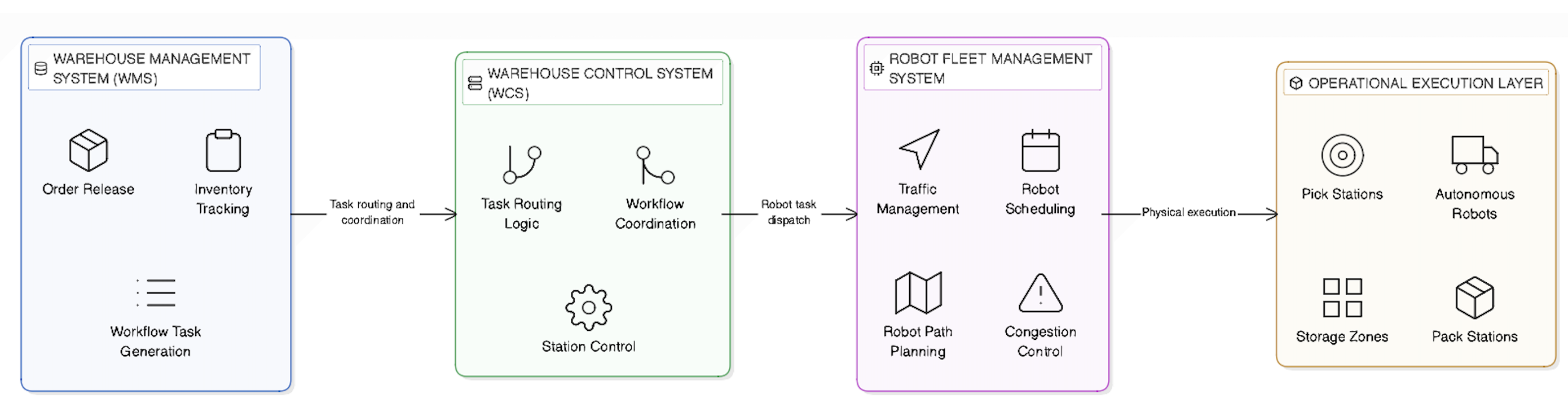

Component 3: System Orchestration Complexity
Robotic systems must coordinate tasks across multiple deployed units and operational workflows. Orchestration complexity grows non-linearly with fleet size and task stream diversity. Orchestration systems that manage a 5-unit pilot fleet adequately frequently break down managing a 30-unit full deployment because the scheduling problem grows combinatorially.
If orchestration complexity increases → coordination latency increases. If coordination latency increases → unit idle time increases. Unit idle time reduces system throughput.
System orchestration complexity:
S_orch = f(R_fleet, W_complexity, System Integration)
Where orchestration complexity increases with fleet size, task stream diversity, and software integration complexity. This constraint applies to AMR fleet orchestration, drone mission planning, multi-arm surgical coordination, and autonomous vehicle dispatch systems.
See: Task Orchestration →
Component 4: Environmental and Physical Constraints
Physical environments that were not designed for robotic deployment impose movement, access, and operational density limits that only become binding at full deployment scale. Pilots typically operate in a controlled zone within a larger environment and do not expose these constraints.
If physical movement capacity is constrained → unit density limits decrease. If environmental variability increases → system reliability decreases.
The operational relationship governing unit cycle time:
T_cycle = f(D_unit, F_environment)
Where environmental constraints directly influence travel time, access conflicts, congestion risk, and operational reliability. Examples by platform type: narrow aisles and shared pathways in retrofit intralogistics facilities; restricted airspace and weather variability in aerial inspection deployments; sterile zone access protocols in surgical environments; unpaved and obstacle-dense terrain in off-highway autonomous vehicle deployments. See: Process Standardization →
Component 5: Integration and Control Architecture
Robotics deployments must integrate with the operational software and data infrastructure of the deployment site. Integration architecture that performs adequately in a pilot , where the integration surface is narrow and engineering support is continuous , frequently degrades at full deployment scale when the integration surface expands and routine operations replace engineered support.
Integration latency degrades system coordination at scale.
If integration latency increases → task dispatch delays increase. Dispatch delays increase unit idle time. Idle units reduce effective system capacity.
This constraint applies to WMS integration in intralogistics, data pipeline integration in inspection operations, EHR and scheduling system integration in healthcare robotics, and telematics and dispatch integration in autonomous vehicle fleets.
See: Integration Cost → · System Uptime →
How the Framework Is Applied
Operators and investment teams treat pilot results as preliminary feasibility indicators, not deployment proof. The framework requires modeling scaling constraints before committing to full deployment across any platform type or domain.
Hard Truth A robotics pilot measures feasibility. It does not prove scalability. (Autonomy Bridge proprietary analysis, 2026)
Step 1: Define the Operational Objective Identify the specific operational problem automation is intended to solve and the full-scale conditions under which it must perform.
Step 2: Document Pilot Performance Record measurable pilot outcomes: throughput improvement, labour or cost reduction, and operational stability indicators.
Step 3: Model Full Deployment Conditions Estimate operational conditions at scale , fleet size, concurrent task streams, demand variability, environmental constraints, and integration surface area.
Step 4: Evaluate Scaling Constraints Analyze unit density and congestion risk, queue formation dynamics, orchestration complexity growth, environmental constraint binding, and integration architecture stability.
Step 5: Identify Failure Conditions Determine whether any scaling constraint is structurally likely to degrade performance below the level observed in the pilot.
Step 6: Determine Deployment Viability If scaling risks are high, conduct deeper modeling or simulation before committing to full deployment capital.
Example Scenarios
Intralogistics AMR deployment: A 3PL operator pilots 8 AMRs in a dedicated picking zone. Full deployment introduces 40 units across shared pathways. Unit density crosses the congestion threshold; cycle times increase 35%; throughput falls below pilot projection.
Aerial inspection deployment: An energy operator pilots 3 drones inspecting a single asset cluster under engineering supervision. Full deployment across 60 assets introduces concurrent mission queues, airspace deconfliction requirements, and data pipeline volume that the orchestration system cannot manage without architectural changes.
Service robotics deployment: A hospital operator pilots 2 delivery robots on a single floor under a controlled task stream. Full deployment across 6 floors introduces elevator access contention, concurrent task queue formation, and integration latency with the scheduling system that degrades delivery reliability.
In each case, the pilot result does not predict system behavior at full operational scale.
Applied analyses using this framework:
Implications for Robotics Deployment Decisions
Scaling risk is highest when unit density, concurrent task stream complexity, and orchestration requirements increase simultaneously. Operational constraints , not robotic technology , drive deployment failures after installation.
Hard Truth Most robotics deployment failures occur after installation, not during pilot evaluation. (Autonomy Bridge proprietary analysis, 2026)
The most common pilot-to-scale failure modes:
Unit Congestion Unit density exceeds available movement or access capacity, producing travel conflicts, blocked pathways or airspace, and reduced cycle efficiency.
Queue Formation Task arrival rates exceed system processing capacity. Queue depth increases latency and reduces throughput predictability.
Task Mismatch at Scale Automation architecture supports the pilot task stream but fails to support the full operational task mix and volume.
Orchestration Breakdown Task coordination systems cannot efficiently manage large unit fleets or complex multi-stream operations, creating idle units, delayed dispatch, and uneven workload distribution.
Integration Instability Synchronisation errors between control systems and operational infrastructure disrupt unit operations at scale.
Operational Rigidity Automation architecture restricts the workflow flexibility required in variable-demand, multi-client, or multi-site operational environments.
Where This Framework Does Not Apply
The Pilot-to-Scale Failure Framework applies to deployments where scaling conditions differ materially from pilot conditions and where the five structural constraints can activate. It does not apply to environments where operational conditions are fixed, fully contracted, and stable from the outset.
Hard Truth Scaling risk is highest in retrofitted or variable-demand operational environments. (Autonomy Bridge proprietary analysis, 2026)
The framework does not apply to:
Purpose-Built Automated Facilities Facilities or operations designed around automation from inception avoid the environmental and layout constraints present in retrofit deployments.
Fixed-Demand Captive Operations Operations with fully contracted, stable task volume and predictable workflows where utilization variability is not a risk.
Deterministic Process Automation Automation in fixed, deterministic process flows where task arrival is machine-paced and constant rather than demand-driven and variable.
Conceptual Model
Pilot success confirmed
↓
Scaling expansion begins
↓
Structural constraints activate
, Unit density → congestion
, Task arrival → queue formation
, Fleet size → orchestration breakdown
, Environment → movement limits
, Integration surface → dispatch instability
↓
Performance breakdown
Frequently Asked Questions
What is the Pilot-to-Scale Failure Framework? The Pilot-to-Scale Failure Framework is a proprietary operational analysis model developed by Autonomy Bridge that identifies five structural constraints , unit density and congestion, queue formation, orchestration complexity, environmental constraints, and integration architecture , that cause robotics systems to succeed in controlled pilots but fail under full operational deployment. It applies across all robotic platform types and operational domains.
Why do robotics pilots succeed but fail at full operational scale? Robotics pilots succeed because they operate in controlled conditions , limited fleet size, simplified task streams, and dedicated engineering oversight. Full deployment forces the system to interact with every operational constraint simultaneously: human movement patterns, multiple concurrent workflows, demand variability, and multi-unit fleet interactions. When those interactions compound, system complexity grows faster than orchestration capacity and performance breaks down.
What is unit congestion in a robotics deployment? Unit congestion occurs when deployed unit density exceeds the movement or access capacity of the operational environment. As unit density increases, travel or access conflicts increase, cycle time lengthens, and effective throughput declines. Congestion is a non-linear constraint , it appears suddenly once density crosses an environment-specific threshold, rather than degrading gradually as units are added.
How does orchestration complexity cause robotics failures at scale? Orchestration complexity increases with fleet size, task stream diversity, and software integration requirements. As complexity grows, coordination latency increases, units idle waiting for task dispatch, and workload distribution becomes uneven. Orchestration systems that managed a 5-unit pilot fleet adequately frequently break down managing a 30-unit full deployment because the scheduling problem grows non-linearly with fleet size and task stream count.
Which robotic platform types does this framework cover? The framework covers all platform types where pilot conditions differ materially from full deployment conditions: intralogistics mobile platforms (AMRs, AGVs), aerial robotic platforms, commercial indoor service robots, inspection robots, surgical and clinical platforms, off-highway autonomous vehicles, on-road autonomous vehicles, and underwater or surface maritime platforms. The five structural constraints apply across all of these; the specific manifestation varies by platform type and operational environment.
Apply this framework to your deployment decision.
