Framework
How Warehouse Automation Decisions Are Actually Made
The Warehouse Automation Decision Framework evaluates robotics deployment through five sequential decision phases , Problem Identification, Vendor Evaluation, Pilot Deployment, ROI Modeling, and Scaling Decision , replacing vendor ROI assumptions with an operator-driven model focused on utilization risk, integration complexity, and workflow constraints.
Evidence scope: these pages distinguish analytical interpretations, illustrative calculations and source accounts. Unsupported numerical benchmarks identified in the review have been withdrawn. Retained case narratives are source accounts, not independently verified client outcomes; they have not been relabelled as hypothetical. Internal framework links provide context, not external substantiation. Read the page-specific assumptions and limitations and the Methodology.
The Warehouse Automation Decision Framework is a proprietary operator-side analytical model developed by Autonomy Bridge that evaluates warehouse robotics deployment as a capital allocation decision under demand uncertainty. The framework structures the decision through five sequential phases , Problem Identification, Vendor Evaluation, Pilot Deployment, ROI Modeling, and Scaling Decision , replacing vendor ROI assumptions with an operator-driven model focused on utilization risk, integration complexity, and workflow constraints. (Autonomy Bridge analytical interpretation; underlying evidence not independently verified)
Warehouse automation deployment in mid-size 3PL fulfillment centers is not primarily a technology decision. It is a capital allocation decision under demand uncertainty. The relevant question is whether converting variable labor capacity into fixed robotic capacity improves facility economics under real operating conditions.
This framework targets mid-size 3PL fulfillment warehouses in the United States and Canada operating in multi-client environments with variable demand.
Framework hub: All Autonomy Bridge Frameworks →
Problem the Framework Solves
Warehouse automation becomes economically viable when the reduction in labor costs exceeds the capital recovery burden introduced by fixed robotic capacity. The determining factor is not peak throughput but sustained utilization across real demand cycles.
Automation deployments fail when the system is sized for peak demand but operates far below that capacity during normal operations. In most mid-size 3PL warehouses, labor is the dominant variable operating cost , workers can be reassigned across workflows and client accounts as demand shifts. Automation converts that variable labor capacity into fixed infrastructure.
The central decision problem:
Can the facility sustain enough throughput to keep the installed automation system economically productive over time?
This question is more complex in 3PL environments because order volume varies by client, seasonal peaks distort demand patterns, and contract churn can remove volume after deployment. Automation must remain economically viable even if original demand assumptions change.
(Autonomy Bridge analytical interpretation; underlying evidence not independently verified)
Why Existing Approaches Fail
Many automation projects are justified using ROI models before operational constraints are validated. Vendor ROI models frequently assume high utilization and near-complete labor substitution. Real warehouse operations rarely sustain both simultaneously.
Automation economics cannot be evaluated using static ROI assumptions because throughput varies over time and utilization changes with demand cycles. Economic failure rarely occurs immediately , it emerges gradually as utilization falls below expectations.
Common failure modes include:
- Underutilized automation capacity , installed infrastructure remains idle during off-peak demand periods
- Overestimated labor savings , workers remain necessary for tasks assumed to be automated
- Workflow mismatch , automation architecture conflicts with SKU mix or order profile. See: Workflow Constraint →
- Integration failures , data synchronization issues disrupt order fulfillment workflows. See: Integration Cost →
- Downstream bottlenecks , packing or sortation constraints limit facility throughput
- Demand contraction , client churn reduces volume after deployment
(Autonomy Bridge analytical interpretation; underlying evidence not independently verified)

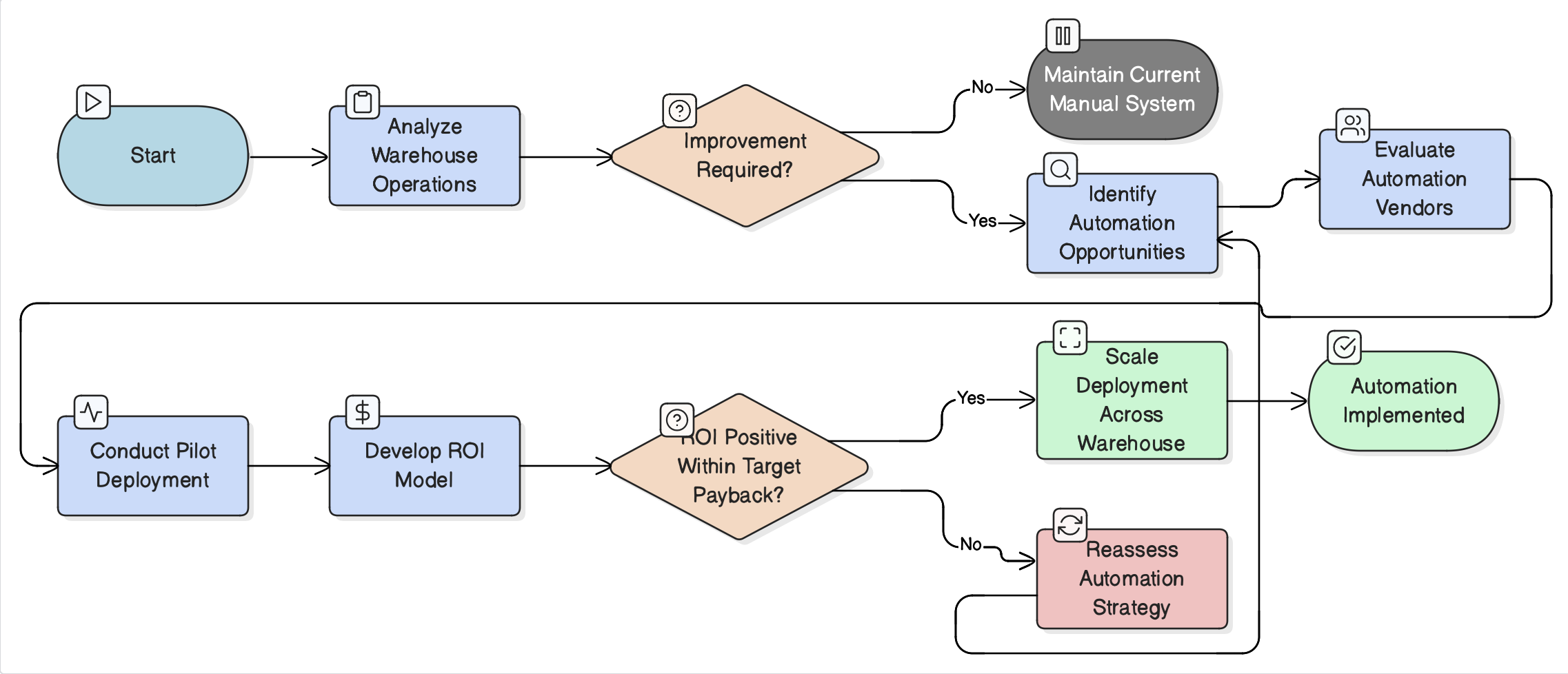

Framework Overview
The Warehouse Automation Decision Framework evaluates robotics deployment as a sequence of operational decisions rather than a single ROI calculation. Each stage tests whether automation remains economically defensible under realistic operational conditions.
Framework Definition
Five sequential decision phases:
- Problem Identification
- Vendor Evaluation
- Pilot Deployment
- ROI Modeling
- Scaling Decision
Each phase filters whether automation should proceed to the next stage. Automation projects that skip these stages produce unrealistic ROI expectations.
Decision Flow
Problem
↓
Vendor shortlist
↓
Pilot deployment
↓
ROI evaluation
↓
Scale decision
(Autonomy Bridge analytical interpretation; underlying evidence not independently verified)
Component 1 , Operational Decision Context
Automation decisions occur within the operational structure of multi-client 3PL fulfillment environments. Order demand varies across clients and time periods. Seasonal peaks introduce temporary demand spikes. Contract churn can remove large volumes of order flow after automation deployment.
Labor is normally a flexible operating resource , workers can be reassigned across picking, packing, receiving, and other workflows. Automation converts flexible labor capacity into fixed infrastructure, introducing utilization risk. If demand declines or shifts, installed automation capacity may remain underutilized while capital costs continue.
Automation must remain economically viable even if demand assumptions change. See: Peak-to-Average Ratio → · Automation Readiness →

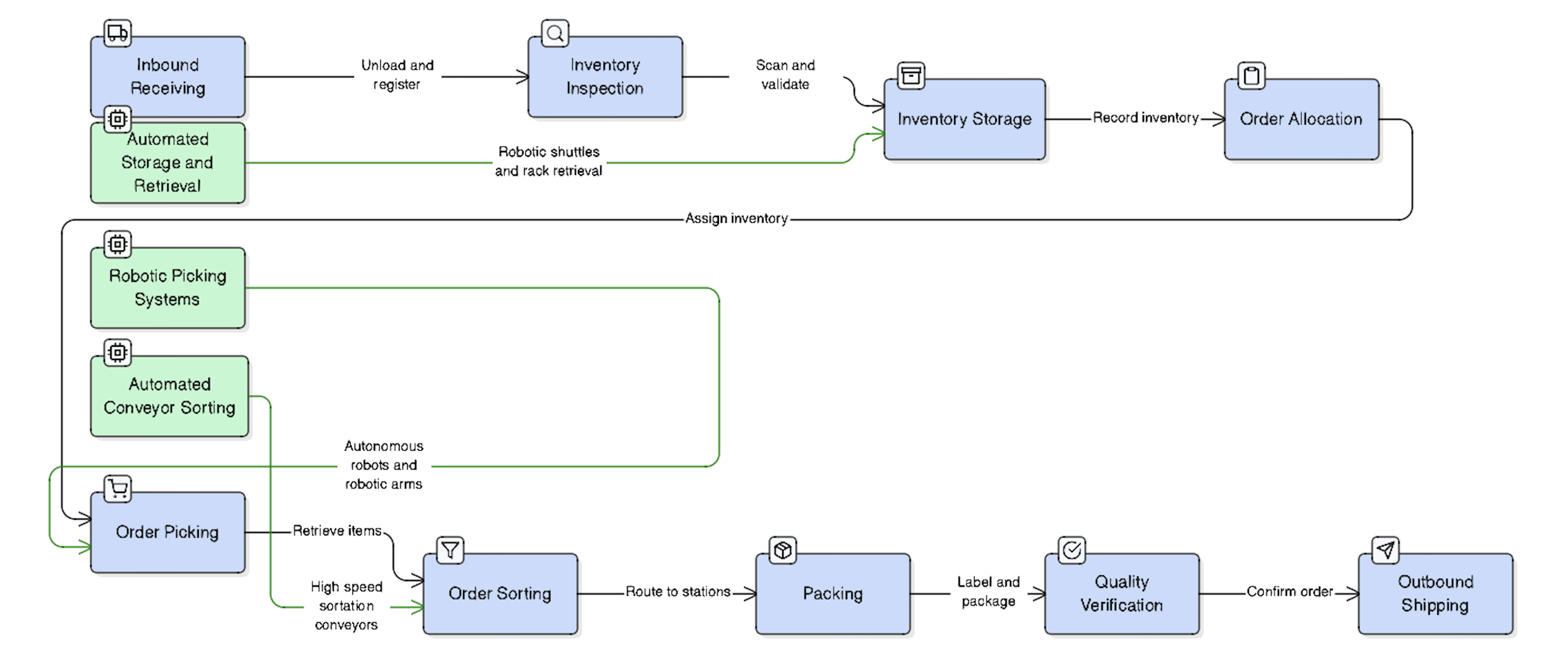

Component 2 , Warehouse Order Fulfillment Workflow
Automation economics must be evaluated within the context of the full warehouse workflow.
A typical fulfillment workflow includes:
- Inbound receiving , inventory arrives and is unloaded
- Inventory inspection , items are scanned and validated
- Inventory storage , goods are placed into storage locations
- Order allocation , the warehouse management system assigns inventory to orders
- Order picking , workers or robots retrieve items
- Order sorting , items are routed to appropriate packing stations
- Packing , items are packaged and labeled
- Quality verification , order contents are validated
- Outbound shipping , orders leave the facility
Automation systems target specific segments of this workflow: automated storage and retrieval systems for inventory storage, robotic picking systems for item retrieval, automated conveyor sorting for order routing, and autonomous mobile robots for inter-workstation transport.
Automation in one stage exposes constraints in another. Increasing robotic picking speed shifts the throughput bottleneck to packing or sortation. Automation evaluation must consider the entire operational workflow, not isolated tasks. See: SKU Velocity → · Order Profile →

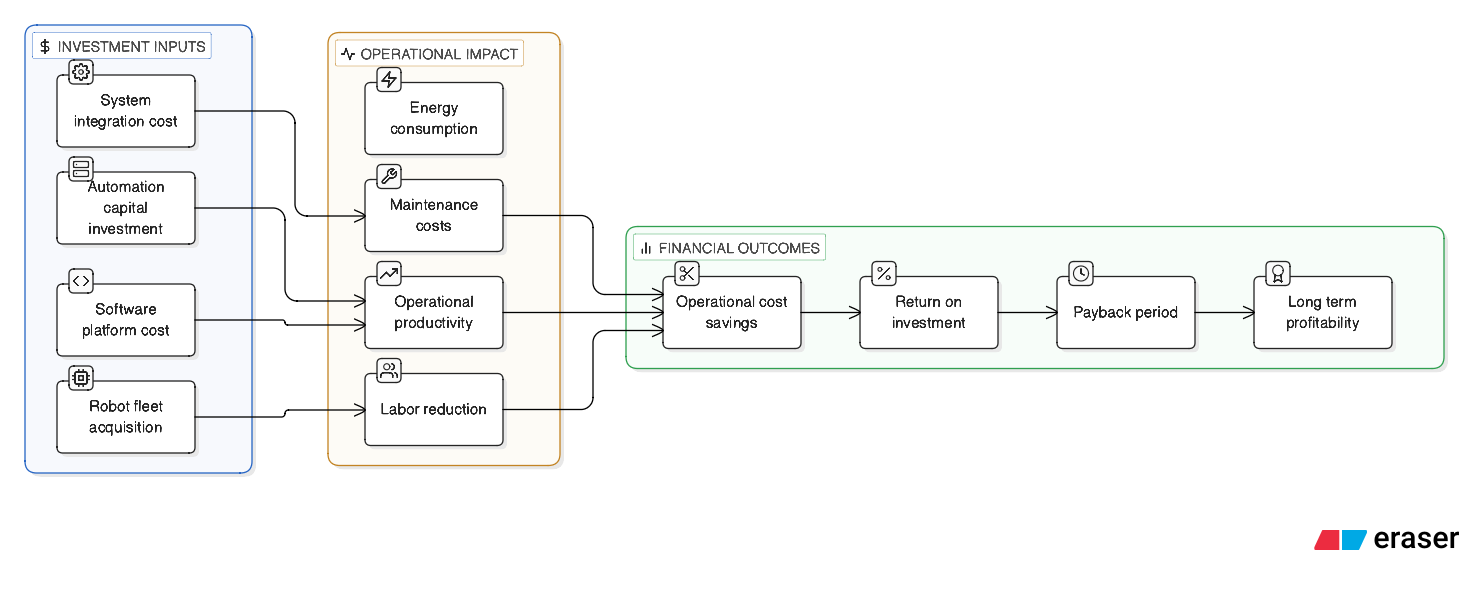

Component 3 , Economic Model of Automation
Automation economics depend on the interaction between capital cost, labor savings, and utilization. Labor savings determine the magnitude of economic benefit; utilization determines whether that benefit occurs frequently enough to recover capital.
Glossary of Variables
| Variable | Definition |
|---|---|
| $C_{capex}$ | Total capital cost of the automation system including hardware, installation, facility modifications, integration, and commissioning |
| $C_{labor}$ | Fully burdened labor cost for tasks targeted by automation , includes wages, benefits, training, turnover, supervision, and overtime |
| $U$ | System utilization , the proportion of installed automation capacity actively used over time |
| $T_{system}$ | Maximum theoretical throughput capacity of the automation architecture |
| $V_{orders}$ | Total order or order-line volume processed annually |
| $D_{variability}$ | Demand volatility over time, including seasonal peaks, promotions, and client churn |
| $L_{sub}$ | Labor substitution ratio , the share of labor tasks eliminated rather than relocated |
| $C_{integration}$ | Operational and technical effort required to integrate robotics with existing warehouse systems |
| $F_{flex}$ | Operational flexibility remaining after automation deployment |
Automation cannot be evaluated using static ROI models because throughput varies over time.
Conceptual Economic Model
ROI_H = (sum(S_t, t=1..H) - C0) / C0
C0 is initial installed investment in currency units; S_t is incremental net cash benefit in year t after operating costs; H is the chosen horizon in years. ROI_H is dimensionless for C0 > 0. A cash amount divided by time is a rate, not an ROI. Avoid counting depreciation as an extra cash cost after including C0.
Automation produces positive ROI only if actual system utilization converts theoretical labor savings into real operating savings. See: Removable Labor Share → · Capital Recovery Period →
Machine-Readable Logic
(Autonomy Bridge analytical interpretation; underlying evidence not independently verified)

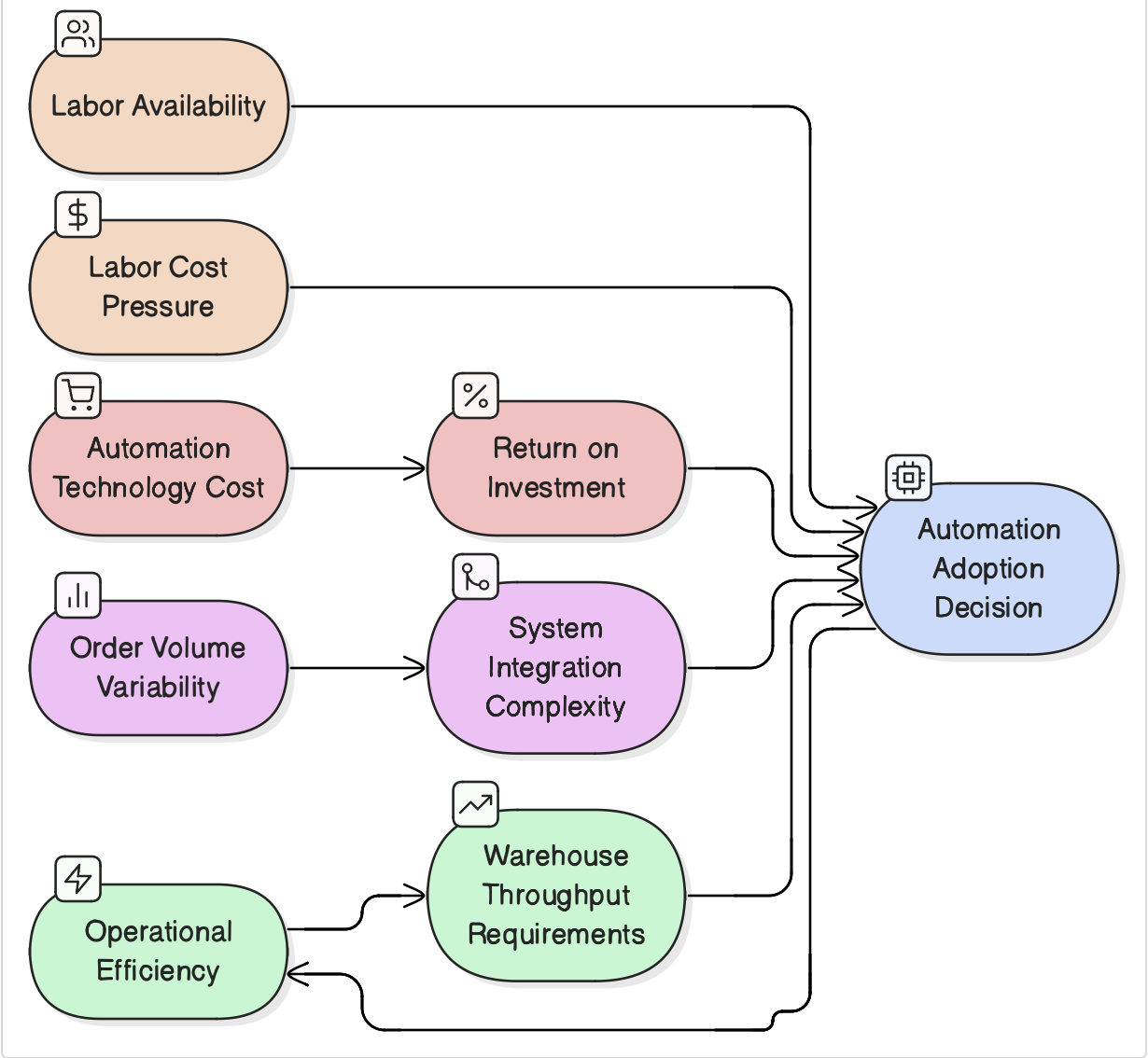

Component 4 , Key Variables Influencing Automation Adoption
Automation economics depend heavily on several operational variables.
Key Sensitivity Drivers
System Utilization ($U$) Utilization determines whether installed capacity remains economically productive.
Labor Cost ($C_{labor}$) Higher labor costs increase the economic advantage of automation.
Demand Variability ($D_{variability}$) Higher variability reduces average utilization.
Labor Substitution Ratio ($L_{sub}$) If automation removes only a small portion of labor tasks, economic impact declines.
Robot Density Excessive robot density introduces congestion effects that reduce productivity gains.
Machine-Readable Logic
(Autonomy Bridge analytical interpretation; underlying evidence not independently verified)

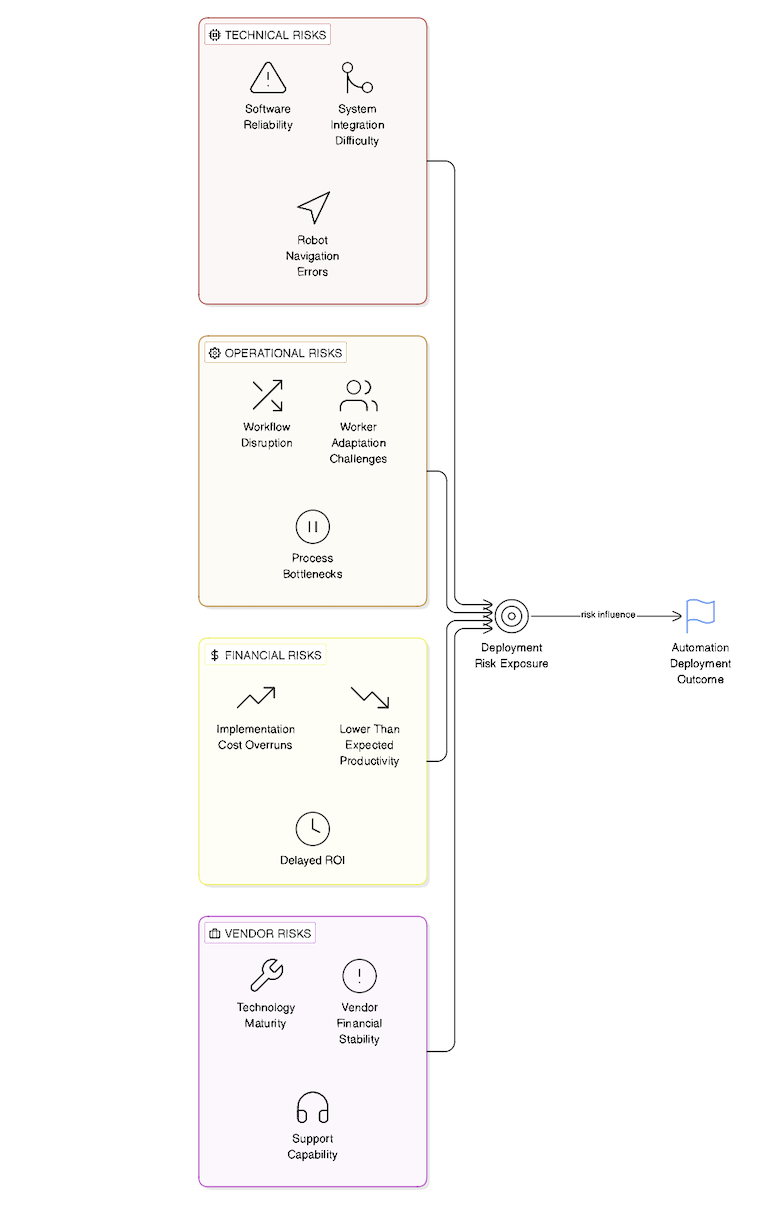

Component 5 , Deployment Risk Structure
Automation deployment introduces multiple layers of risk that influence economic outcomes.
Technical Risks Software reliability. System integration difficulty. Robot navigation errors.
Operational Risks Workflow disruption. Worker adaptation challenges. Process bottlenecks.
Financial Risks Implementation cost overruns. Lower than expected productivity. Delayed ROI.
Vendor Risks Technology maturity. Vendor financial stability. Support capability.
These risks combine to create overall deployment risk exposure, which ultimately determines automation deployment outcomes. See: Ramp Risk → · System Uptime →
How the Framework Is Applied
Operators apply the framework as a structured decision process rather than a one-time financial calculation.
Example Scenario
A third-party logistics provider operates a multi-client e-commerce fulfillment center with a large SKU catalog, piece-picking dominant workflows, seasonal peak demand, and shared labor pools across client accounts. The facility faces rising labor costs and throughput constraints during peak periods.
Applying the Framework
Step 1 , Problem Identification The warehouse identifies picker travel time as the primary productivity constraint.
Step 2 , Vendor Evaluation Vendors propose two architectures: goods-to-person robotics and autonomous mobile robot transport systems.
Step 3 , Pilot Deployment A small robot fleet is deployed in one picking zone to test operational productivity.
Step 4 , ROI Modeling The operator models how utilization varies across peak season, average demand, and potential client churn.
Step 5 , Scaling Decision Leadership determines whether facility-wide deployment remains economically viable under demand variability.
(Autonomy Bridge analytical interpretation; underlying evidence not independently verified)
Implementation Protocol
Step 1 , Define the Operational Constraint Determine whether the primary problem is labor cost, throughput capacity, or space utilization.
Step 2 , Establish Baseline Operational Data Measure labor allocation, order flow variability, and facility throughput limits.
Step 3 , Identify Key Variables Estimate capital cost, potential labor substitution, and system throughput.
Step 4 , Apply the Economic Model Evaluate how utilization and labor savings interact over time.
Step 5 , Test Failure Conditions Assess exposure to demand volatility, integration complexity, and workflow mismatch.
Step 6 , Determine Whether Deeper Engineering Analysis Is Justified Proceed only if the system remains economically viable across multiple demand scenarios.
(Autonomy Bridge analytical interpretation; underlying evidence not independently verified)
Applied analyses using this framework:
- Goods-to-Person System Evaluation →
- Warehouse Automation ROI Evaluation →
- Robotics Market Entry Decision Analysis →
Implications for Warehouse Automation Decisions
Automation economics change significantly depending on operational context. The framework is designed for retrofit automation decisions in mid-size 3PL warehouses. It does not apply to all automation environments.
Non-Applicable Environments
Greenfield highly automated distribution centers. Facilities designed around automation from the beginning operate under different economic constraints.
Single-retailer captive distribution centers. Demand stability is significantly higher than in multi-client 3PL operations.
Small warehouse automation purchases. Equipment such as labeling machines or small conveyors do not materially alter facility economics.
Manufacturing automation. Production environments have fundamentally different workflow dynamics.
(Autonomy Bridge analytical interpretation; underlying evidence not independently verified)
